440v Special Filter For Inverter


Product Introduction

1.Reducing the conducted emission from inverter to power network.

2.Exceptional attenuation performance from 150kHz~30MHz.

3.Terminal series filter with most compact and slim design.

4.Improve the reliability of the whole system.

5.N99 for the use of copper bar, other terminals.

6.Terminals for copper and suffix P series of filter for high leakage currents, suitable for testing use.but does not apply to leakage protector occasions

7.Copper bar and filter the suffix P Series in non symmetrical and capacitance tolerance caused maximum leakage current is 33mA (400VAC/50Hz)

Technical Data

1.Rated voltage:  440/250 VAC

2.Operating frequency :  50Hz

3.Rated current:  10A-2500A

4.High potential test voltage :  P-E2100VDC/2sec    P-P 2100VDC/2sec

5.Temperature range:  -25°C-100°C(25/100/21)

6.Design corresponding to :  IEC/EN60939、UL1283

7.Typical work frequency :  150kHz~30MHz

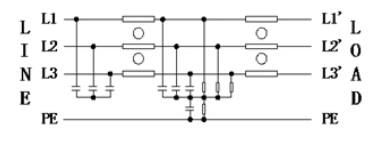

Typical electrical schematic of input filter

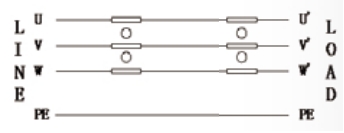

Typical electrical schematic of output filter

Typical Applications

1.Three-phase variable speed motor drives, servo drives, inverter and converters

2.Energy conversion devices, such as machines and automatic equipment

3.HVAC equipment, elevators, power suppliers, UPS, injection molding machine and further three-phase applies

4.Wind energy,solar energy and other new energy inverter system

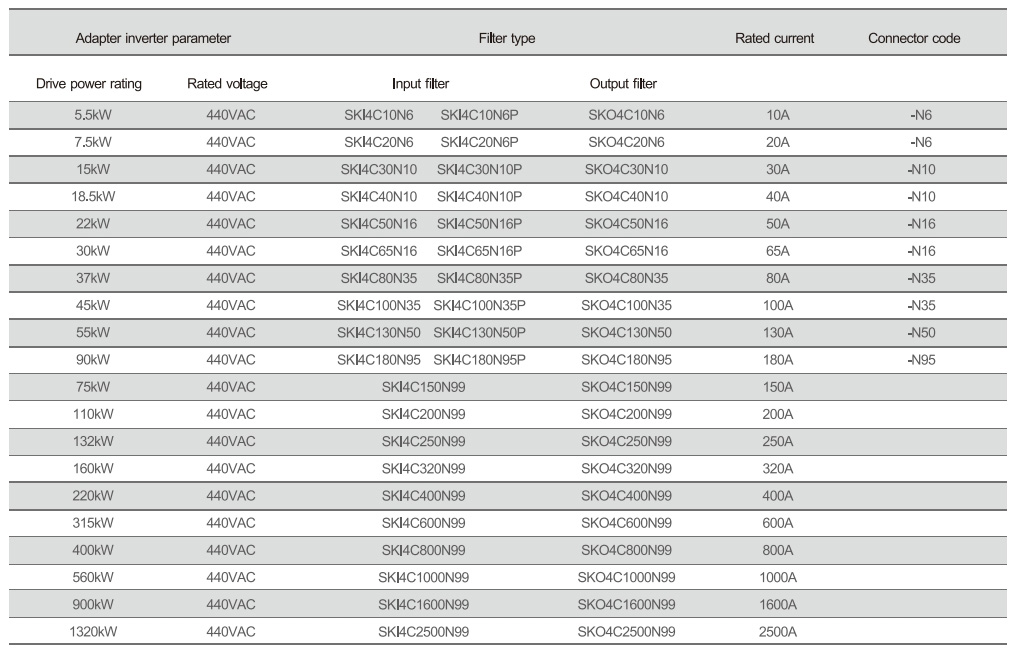

Filter Selection Table

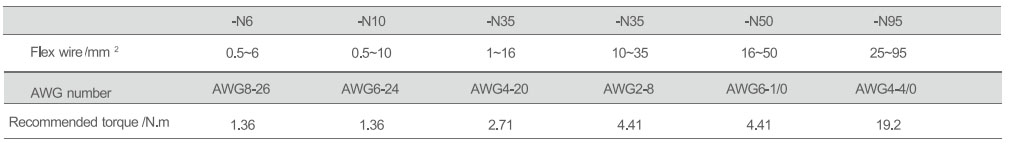

Filter Input/output Connector Cross Sections

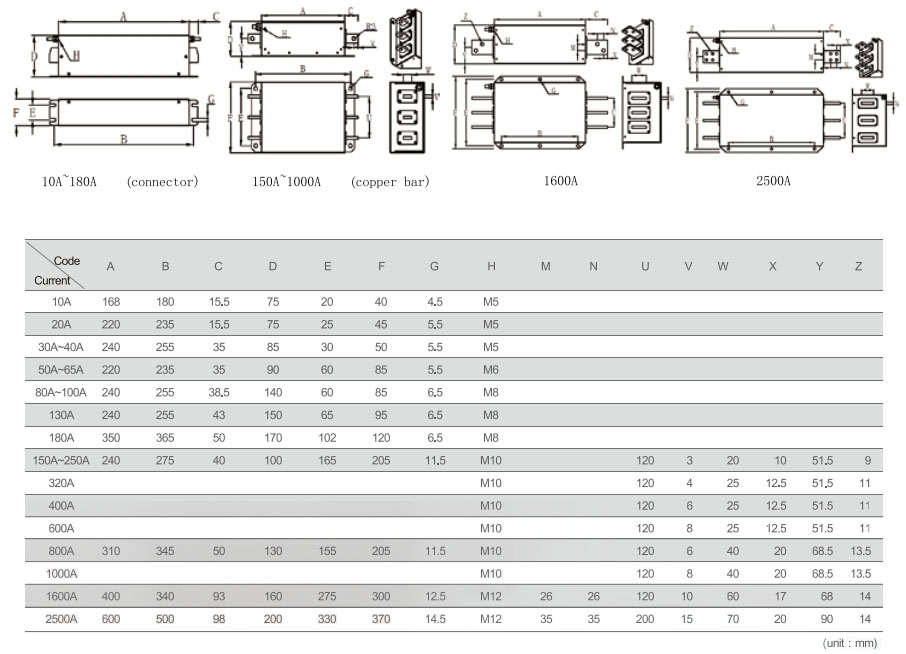

Product Size

NO. Title Download Link
1. Filter         Download
