Filter
Professional soft starter and frequency inverter supplier and manufacturer in China
Product Introduction
1.Reduces conducted emissions towards the solar panel, Helps to meet international EMC
regulations for the entire PV system
2.Excellent capability to reject CM and DM noise
3.Reduces the probability of EMI radiation off the converter system.
4.Helps to prevent pre-mature panel aging, because of HF leakage currents
5.less than 100A filters, using solid safety connector, more than 150A filters, using copper bar.
Technical Data
Maximum continuous operating voltage : 1200VDC
Rated frequency: DC
Rated current: 25A-2300A@55 C
High potential test voltage : P-E 3600VDC/5sec P-P3000VDC/5sec
Temperature range: -25 C~100C (25/100/21 )
Design correspondingto : IEC/EN 60939
Typical work frequency : 1 50kHz~30MHz
Protection class: IP20(25A~100A) IP00(150A-2300A)
Typical Applications
This series filters are primarily designed for PV and wind power inverters. However, they canpotentially also be used in other DC applications within published specifications, like UPS, DC motordrives,or DC quick chargers.

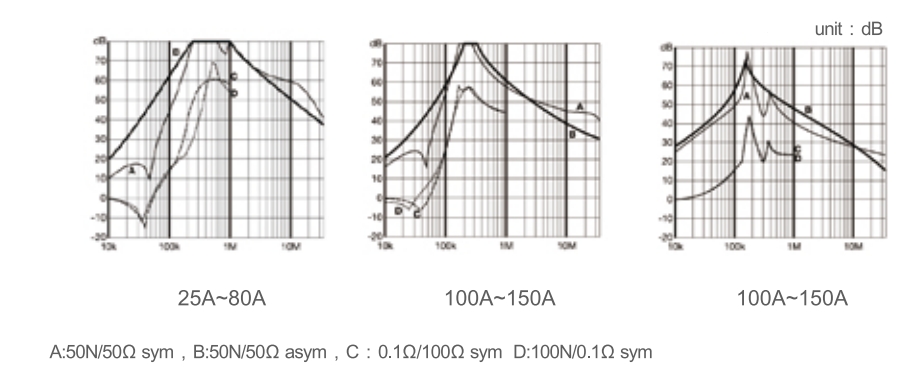

Input Filter Attenuation
Filter Selection Table
| Filter type | Rated current @40°C[A] | Driver power rating[KW] | Power loss @25°C/50Hz[W] | Connector type |
|---|---|---|---|---|
| SKD12B25DN10 | 25 | 10 | 8 | sald safety connecdor |
| SKD12B50DN35 | 50 | 20 | 17 | solid safety connector |
| SKD12B80DN35 | 80 | 30 | 18 | solid safety connecdor |
| SKD12B100DN35 | 100 | 40 | 22 | solld safety connector |
| SKD12B150DN99 | 150 | 60 | 31 | copper bar |
| SKD12B200DN99 | 200 | 80 | 36 | copper bar |
| SKD12B30DN99 | 300 | 120 | 14 | copper bar |
| SKD12B400DN99 | 400 | 150 | 16 | copper bar |
| SKD12B60DN99 | 600 | 250 | 29 | copper bar |
| SKD12B800DN99 | 800 | 350 | 26 | copper bar |
| SKD12B1000DN99 | 1000 | 400 | 40 | copper bar |
| SKD12B1500DN99 | 1500 | 500 | 45 | opper bar |
| SKD12B2300DN99 | 2300 | 800/1000 | 84 | copper bar |

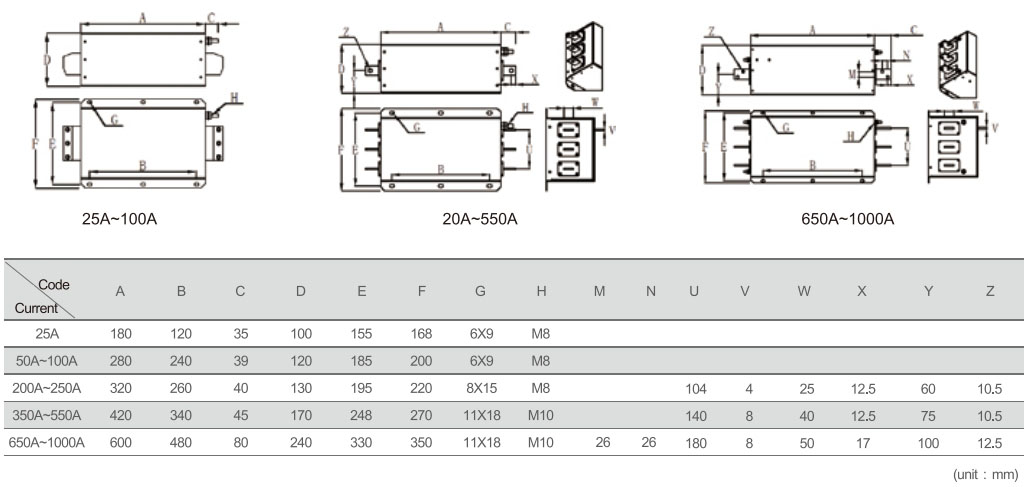

Product Size
Filter Input/output Connector Cross Sections
|
|
NO. | Title | Download Link |
|---|---|---|---|
| 1. | Filter | Download |
Welcome to our website. If you have any requests or suggestions,please feel free to email us at info@safeinvert.com or use the following enquiry form. Please allow us to provide you with the best service.
