Special Filter For 690V Inverter

Share
Parameter

Product Introduction

1.Reducing the conducted emission from inverter to power network.
2.Improve the reliability of the whole system.
3.less than 100A filters, using solid safety connector, more than 200A filters, using copper bar
4.Low leakage current,Lack of a phase, The maximum leakage current is 13. 12mA (except P type).

Technical Data

1.Rated voltage: 690/380 VAC
2.Rated frequency: 50Hz
3.Rated current: 120A~ 1000A
4.High potential test voltage : P-E 2850VDC/60sec P-P 2850VDC/60sec
5.Temperature range: -25C -100C (25/100/21 )
6.Design correspondingto : IEC/EN 60939
7.Typical work frequency : 150kHz- 30MHz

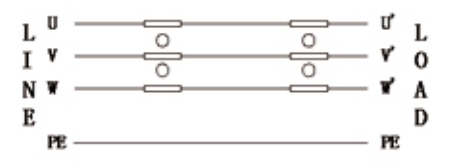

Typical electrical schematic of input filter

Typical electrical schematic of output filter

Filter Selection Table

Adapter inverter parameter Filter type Rated current Connector code
Drive power rating Rated vodtage Input fter Output fter
18.5kW 660- 690VAC SKIBC25N10 SKO6C25N10 25A N10
37kW 660-690VAC SKI6C50N35 SKO6C50N35 50A N35
55kW 660- 690VAC SKI6C80N35 SKO6C80N35 80A N35
75kW 660-690VAC SKI6C100N35 SKO6C100N35 100A N35
132kW 660-690VAC SKI6C200N99 SKO6C200N99 200A
150kW 660-690VAC SKI6C200N99 SKO6C200N99
185kW 660- 690VAC SKI6C250N99 SKO6C250N99 250A
200kW 660-690VAC SKI6C250N99 SKO6C250N99
250kW 660-690VAC SKI6C350N99 SKO6C350N99 350A
315kW 660- 690VAC SKIBC400N99 SKO6C400N99 400A
400kW 660-690VAC SKI6C550N99 SKO6C550N99 550A
500kW 660-690VAC SKI6C650N99 SKO6C650N99 650A
630kW 660-690VAC SKIBC800N99 SKO6C800N99 800A
715kW 660-690VAC SKI6C900N99 SKO6C900N99 900A
800kW 660-690VAC SKI6C1000N99 SKO6C1000N99 1000A

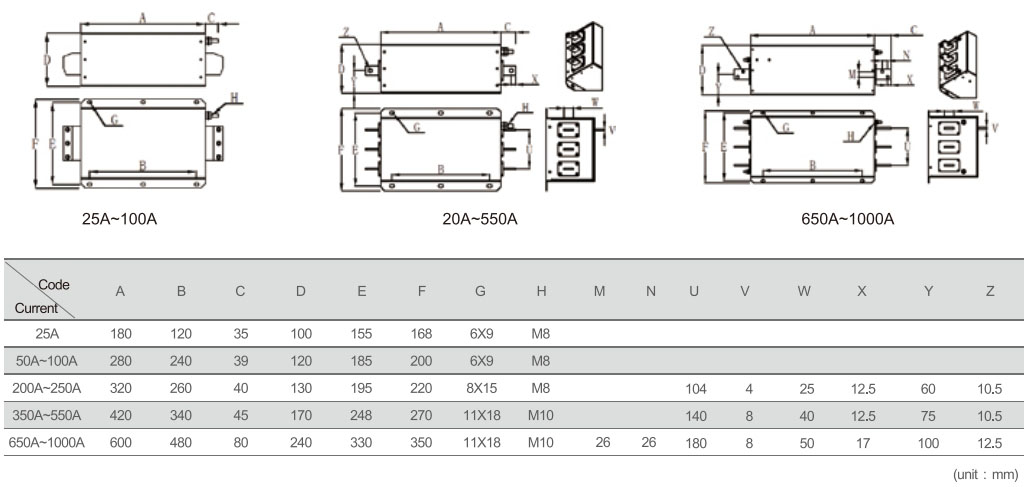

Product Size

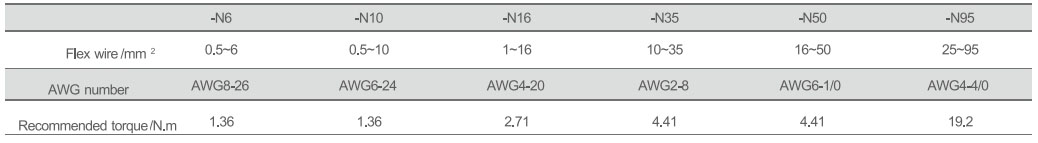

Filter Input/output Connector Cross Sections


NO. Title Download Link
1. Filter         Download
